SANIFLOOR+ Tray

Complete pump, plug and tray solution for installing a shower without the need for major building work

  • Complete solution which can be mounted directly on the ground
  • Low shower tray: 5.5 cm
  • Easy to maintain
SANIFLOOR+ Tray

SANIFLOOR+ Tray

Complete pump, plug and tray solution for installing a shower without the need for major building work

  • Complete solution which can be mounted directly on the ground
  • Low shower tray: 5.5 cm
  • Easy to maintain

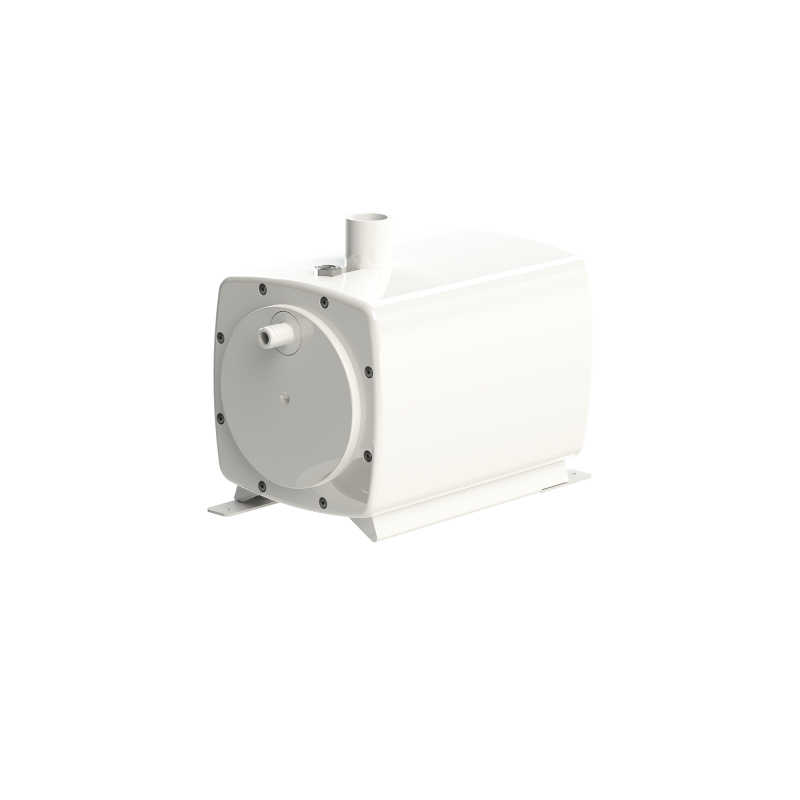

SANIFLOOR+ Tray is the complete solution for installing a shower without the need for major installation work. Including a pump, a plug and a shower tray, the SANIFLOOR+ tray can be mounted directly on the floor. Wireless communication between the pump and plug for easy installation.



The SANIFLOOR+ Tray is available in 6 versions:

  • SANIFLOOR+ Tray 80 x 80
  • SANIFLOOR+ Tray 90 x 90
  • SANIFLOOR+ Tray 100 x 80
  • SANIFLOOR+ Tray 100 x 80 Right-hand pump
  • SANIFLOOR+ Tray 120 x 80
  • SANIFLOOR+ Tray 120 x 80 Right-hand pump

Data sheet

Application
Shower
Number of available inlets
1
Inlet diameter
16 mm
Recommended discharge pipe diameter
32 mm
Motor power
400W
Supply voltage
220-240V/50Hz
Electrical class
1
IP rating
N/A
Shower tray height
N/A
Sound level
N/A
Maximum horizontal discharge
30 m
Maximum vertical discharge
3 m
Activation level
N/A
