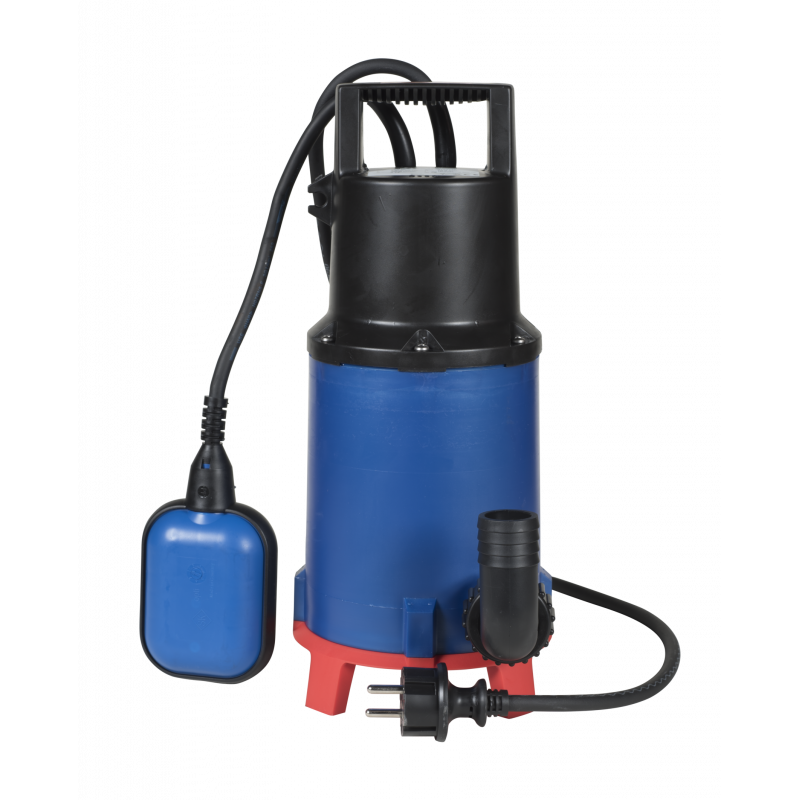

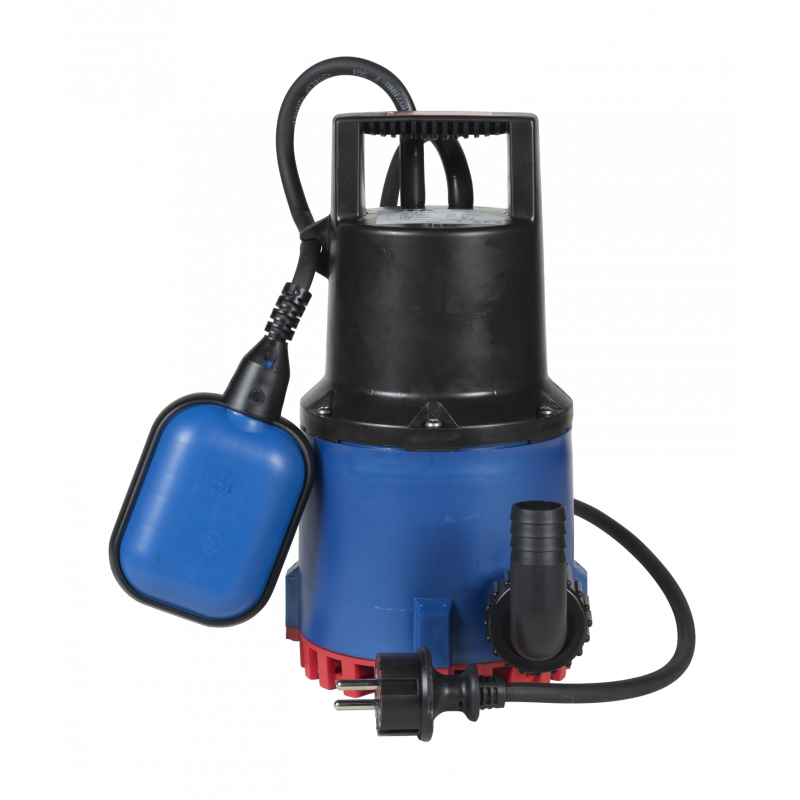

SANISUB S-ZPK

SANISUB S-ZPK, 2 models for all your needs :

  • Pump for aggressive or saline water (salt content max. 15%)
  • Lifting height of 7.5M or 10M
  • 2 models: 30A & 40A
  • Automatic float release
SANISUB S-ZPK

SANISUB S-ZPK

SANISUB S-ZPK, 2 models for all your needs :

  • Pump for aggressive or saline water (salt content max. 15%)
  • Lifting height of 7.5M or 10M
  • 2 models: 30A & 40A
  • Automatic float release

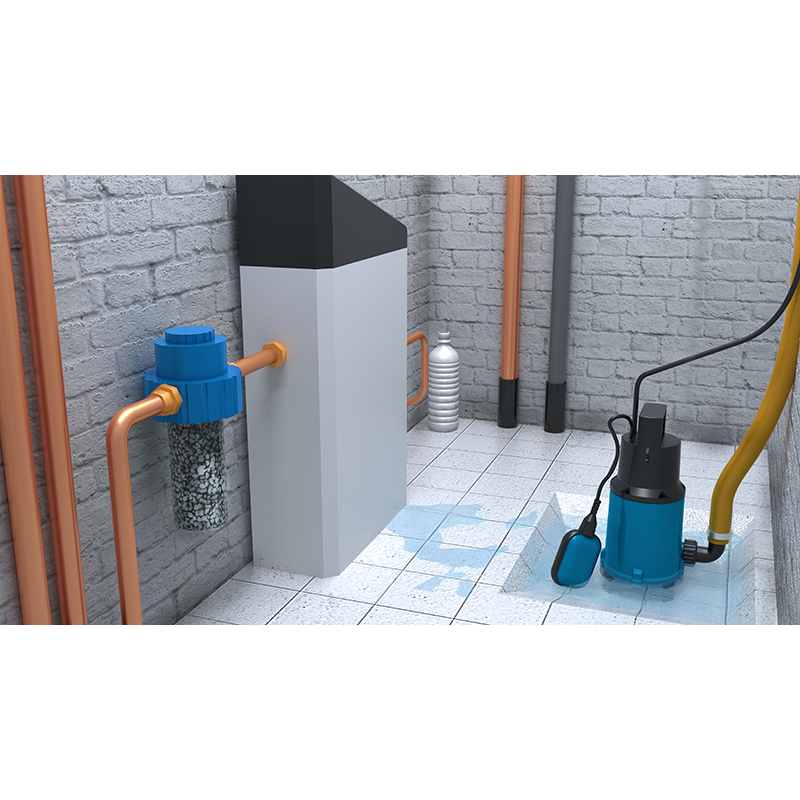

SANISUB S-ZPK is a cellar vacuum pump for pumping clear water from cellars, garages and rainwater manholes. Available in two power ratings of 300 and 850 W, they can be raised to 7.5 or 10 M high with automatic release thanks to the standard float. The S-ZPK versions have a silicon carbide mechanical seal and a 316L STAINLESS STEEL motor housing to drain grey water such as brine water from softeners or salt water (max 15%).

Data sheet

Application
Commercial use
Individual use
Lift pumps
Weight
S-ZPK 30 A : 4,5 kg S-ZPK 40 A : 6,5 kg
Supply voltage
230V/50-60Hz
IP rating
IP68
Maximum absorbed current
2 A
S-ZPK 30 A : 1,3 A S-ZPK 40 A : 3,7 A
Outlet diameter
DN 25
Maximum incoming water temperature
90 °C intermittently (max 5 min)
Power frequency
50-60 Hz
Granulometry
S ZPK 30 A 10 mm S ZOK 40 A 30 mm
Maximum depth (Q eq 0 m3/h)
SANISUB® S ZPK 30 A : 7.5m SANISUB® S ZPK 40 A : 10m
Materials
Polyethylene
Activation method
Float
